Description
AX65
TECH SPECS
What’s In The Box

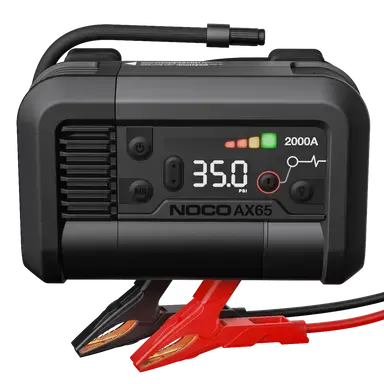

- AX65 Lithium Battery Jump Starter and Air Compressor
- Integrated 3-Foot Braided Inflation Hose
- HD Precision Battery Clamps
- 18in USB-C to USB-C Cable
- Presta Valve Adapter
- Needle Adapter
- Inflatable Toy Adapter
- Microfiber Storage Bag
Starting Current
2000 Amps (Peak)
Battery Types
12 Volt Lead-Acid Batteries
Internal Battery
31.8 Watt-Hour Lithium-Ion
USB Input
USB-C: 5 Volts 1.5 Amps / 9 Volts 3 Amps / 12 Volts 3 Amps / 15 Volts 3 Amps / 20 Volts 3 Amps
USB Output
USB-C: 5 Volts 3 Amps / 9 Volts 3 Amps / 12 Volts 3 Amps / 15 Volts 3 Amps / 20 Volts 3 Amps
Gas Engine Rating
Up to 8.0 Liters
Diesel Engine Rating
Up to 6.0 Liters
LED Flashlight
100 Lumens
Operating Requirements
Operating Temperature: -4° to 122°F(-20° to 60°C)
Storage Temperature: -4° to 122° F (-20°C to +50°C)
Relative Humidity: 0 to 95% Non-Condensing
Power
Voltage: 12 Volts
Max Current Draw: 22 Amps
Working Current: 22 Amps
Motor Rating: 280 Watts
Motor Efficiency: 80%
Cooling: Natural Convection
Air Compressor
Max Pressure: 100 psi / 6.89 bar / 689.48 kPa
Max Tire Size: 35 Inches
Max Airflow: 67 Liters Per Minute
Manual Mode Duty Cycle: 5 min on time / 30 min off time
Fill Time 0 – 40 PSI: 2.0 min +/- 10% with 205-65R16 95H Tire
Fill Time 35 – 40 PSI: 22 sec +/- 10% with 205-65R16 95H Tire
Pressure Gauge: Intuitive Interface + Digital Gauge
Features: Dwell, Auto-Memory, Auto-Shutoff, Manual Mode
Cord Management
Air Hose Length: 3ft (0.91m)
Air Hose Material: Black EDPM with Polyester Braiding
Oil, gas, grease, water, chemical, UV, abrasion resistant
Safety
Over-Current: Yes
Over-Temperature: Yes
Product Size
Height: 3.92in (99.6mm)
Width: 8.45in (215.6mm)
Depth: 5.47in (138.9mm)
Weight: 6.95lb (3.15kg)
IP Rating
IP55 (w/ Ports Closed)
Limited Warranty
1 Year Limited Warrant
