Ford Capri & Escort Spherical Bearing Top Mount Kit

Description

Spherical Bearing Top Mount – Rubber Bonded

• Designed to fit the Escort MK1/2 & Capri large hole strut tops (115MM)
• This mount includes a serviceable spherical bearing.
• The spherical bearing is ideal where the vehicle may experience considerable caster or camber change angular movement. However it does increase the steering effort.
• Traditionally, used on R.W.D. Escorts.
• will increase ride height on Escort from original top by about 20mm

Dimensions:-

• PCD: 3 x 134mm (115mm bolt to bolt)
• Bearing Type: Spherical
• Bearing ID: 20mm
• Bearing OD: 42mm

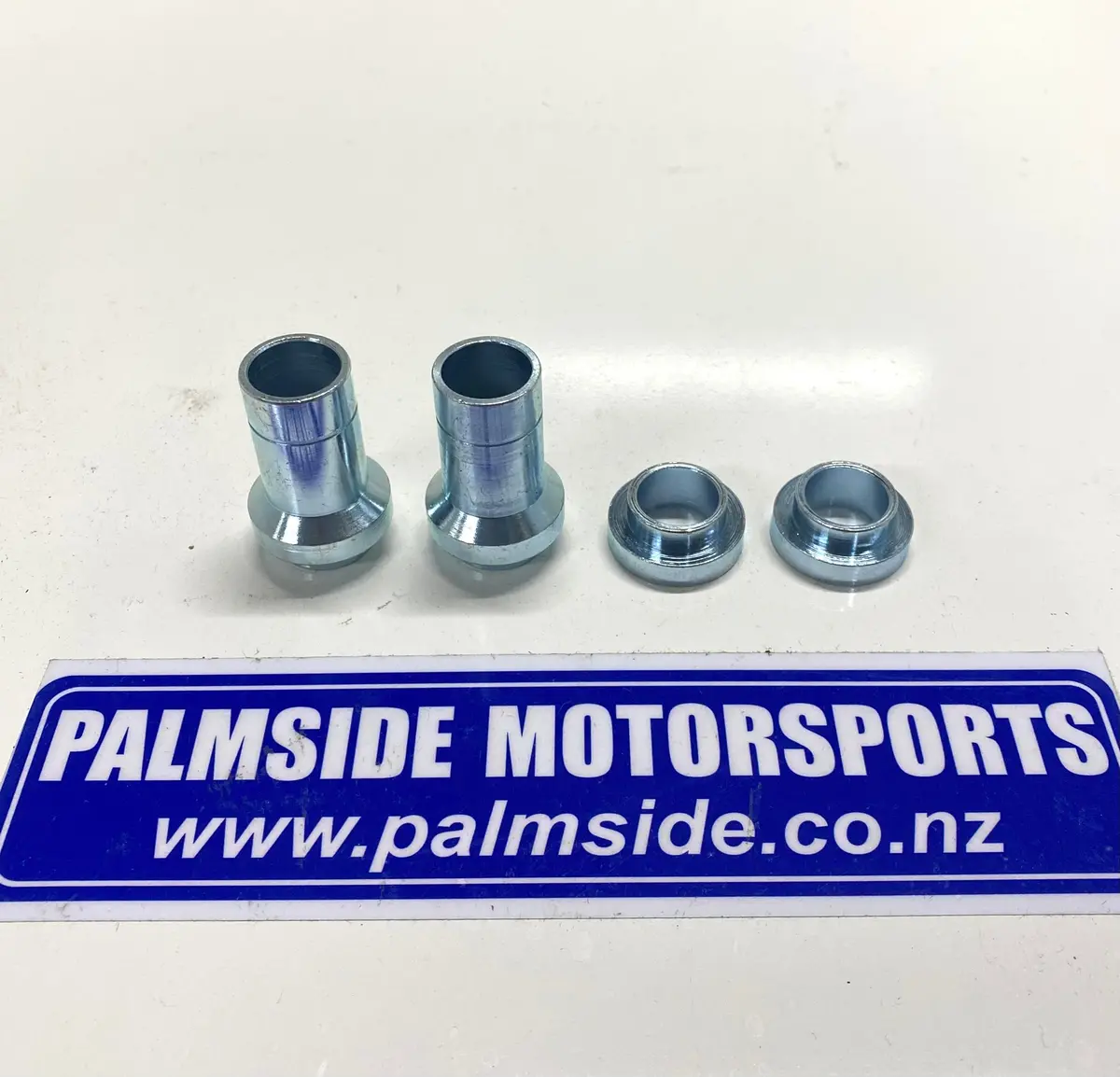

These are designed for 3/4 shaft as with 40mm bilstein, however we do a sleeve kit for mk1 and mk2 when using with standard type inserts RD302- 1/2 or RD303 for 5/8 – these are $35 per kit, and will increase the height of the car around 20mm
