Koso D2 Multi-Function Motorcycle Meter – North America Edition

Description

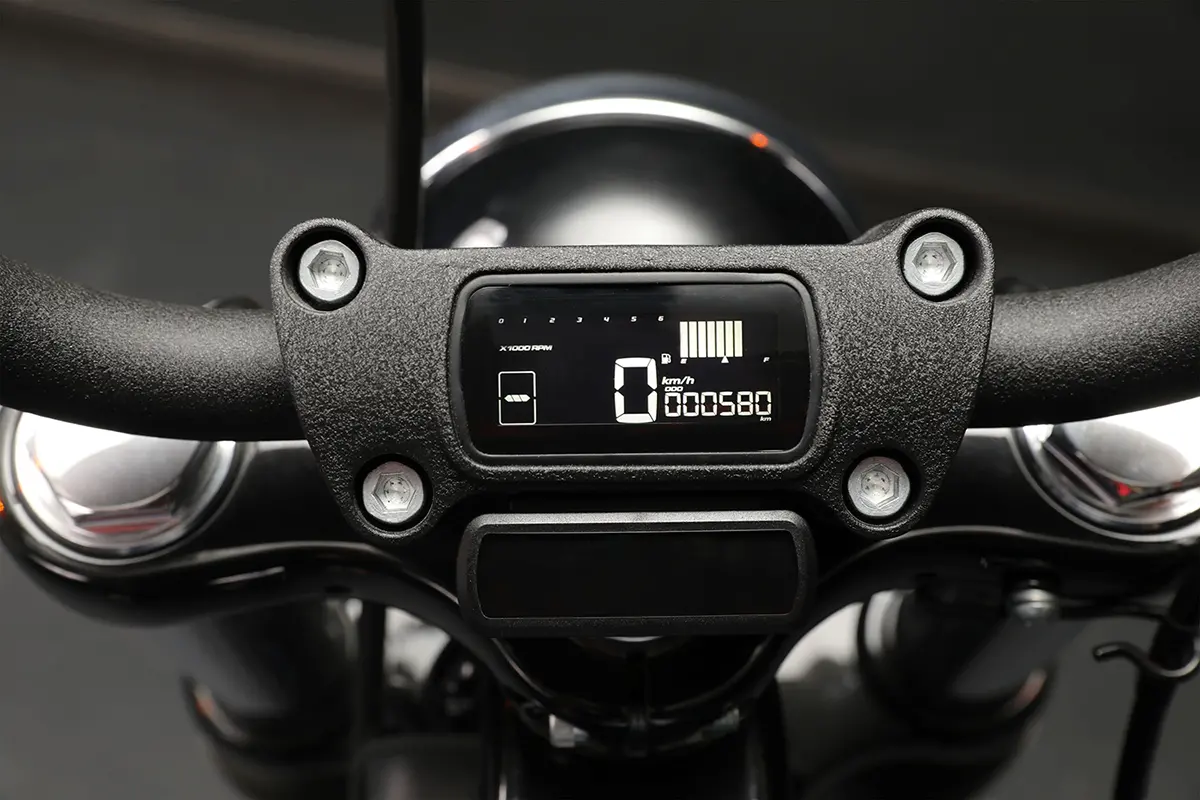

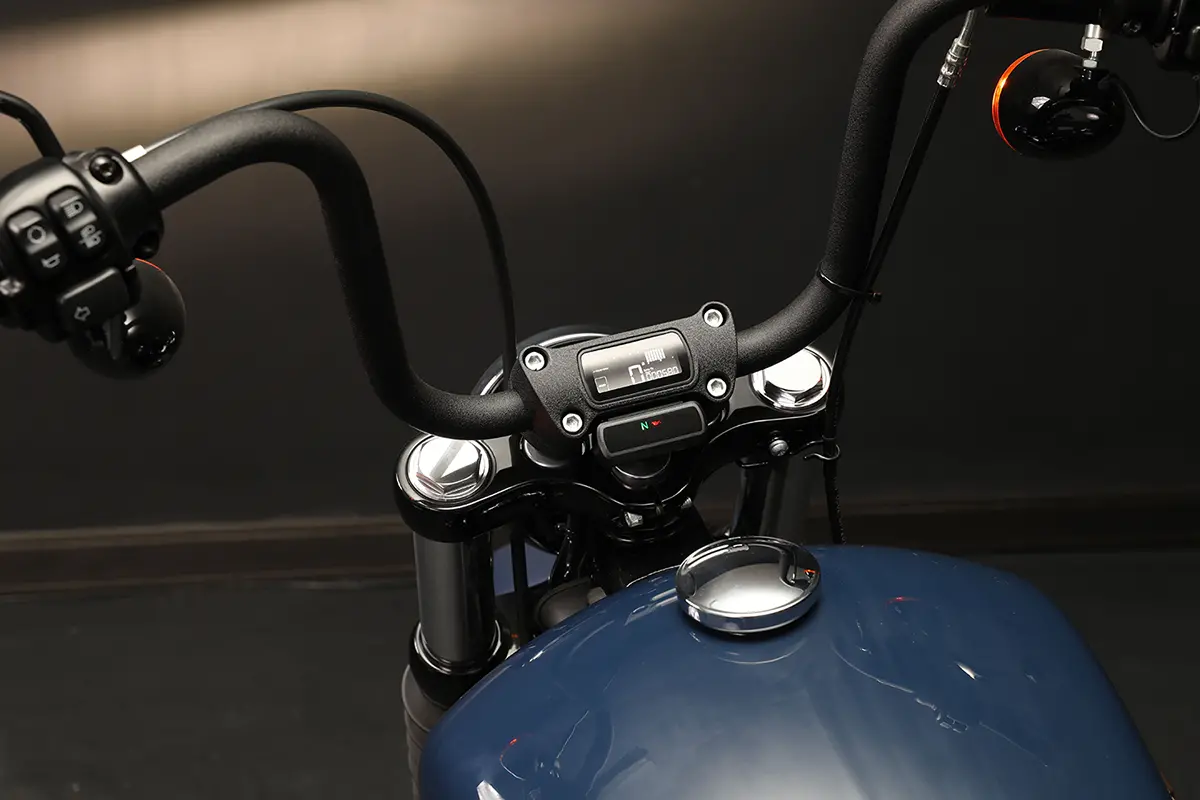

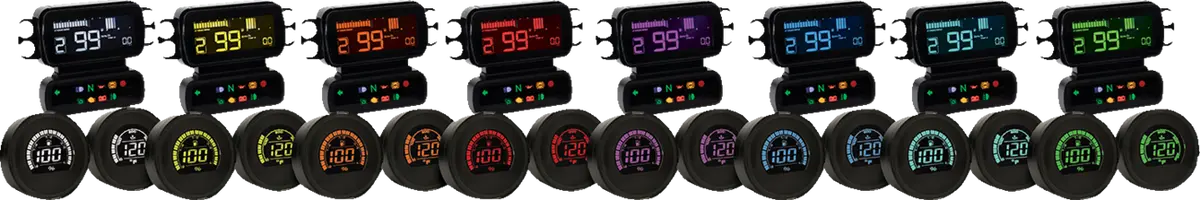

Upgrade your ride with this high-quality, plug-and-play multifunction meter system. Designed for a sleek and integrated look, this display is engineered to mount below the cutout top handlebar clamp, providing a clean aesthetic while keeping vital information in your line of sight. This system is a comprehensive monitoring solution, featuring an 8-color changeable LCD display that allows you to customize your dashboard to your preference.

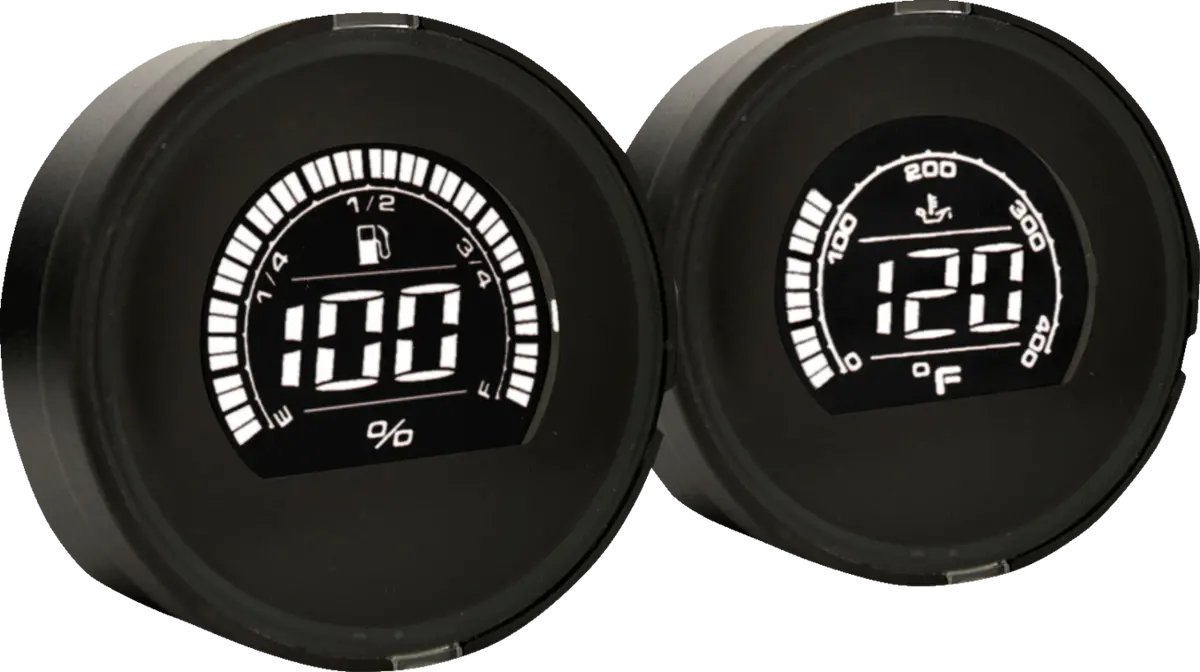

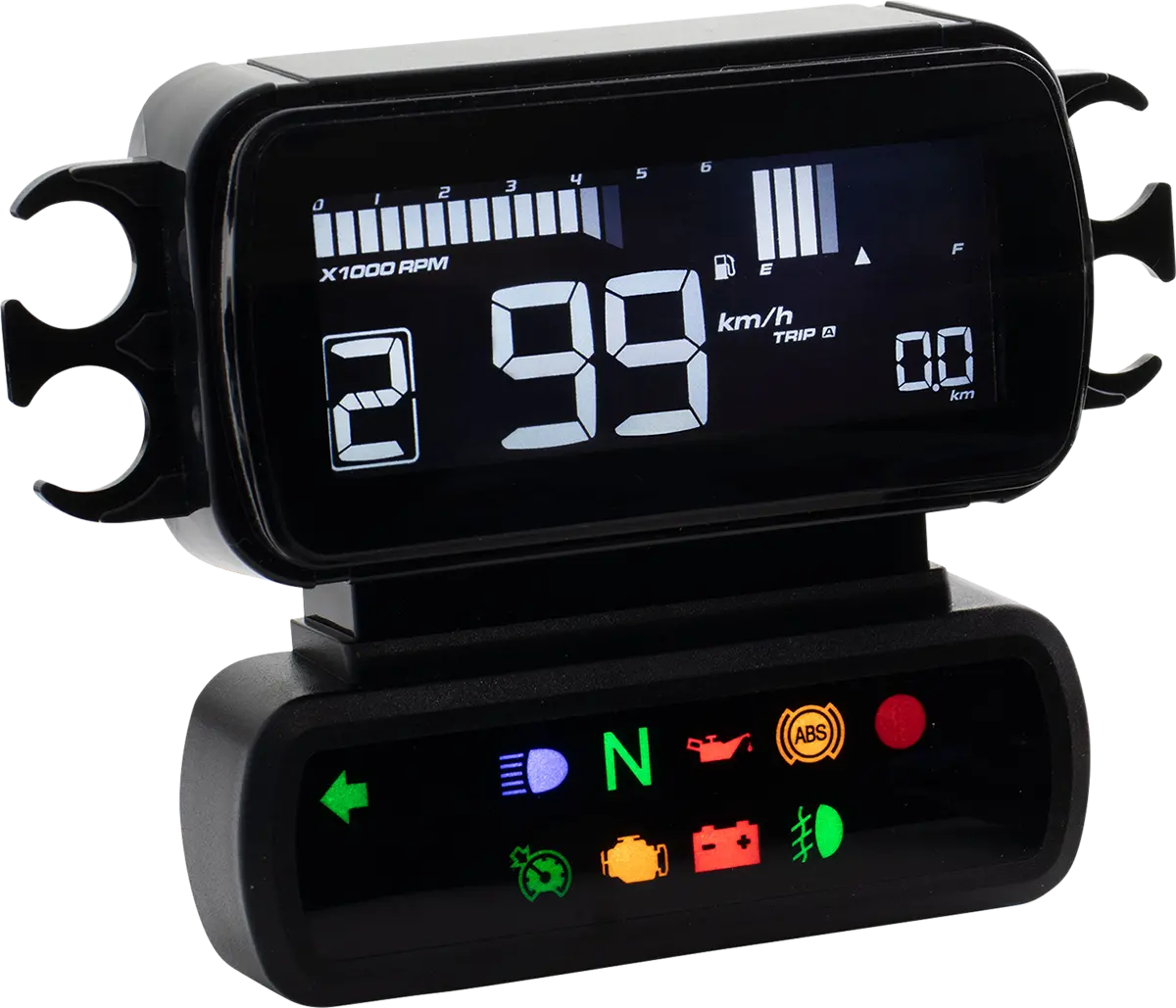

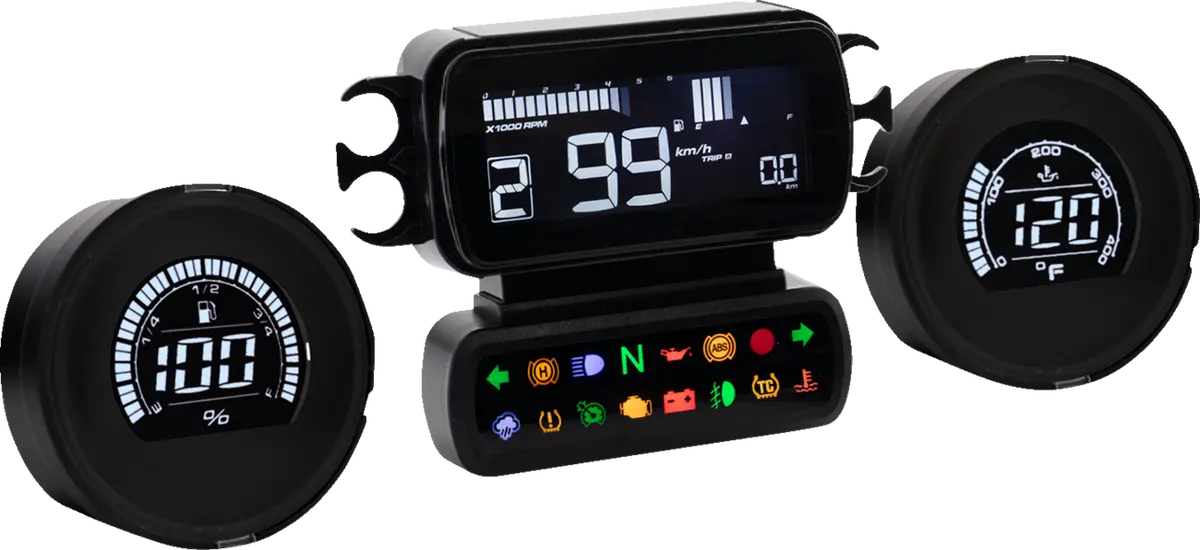

The core unit features a tachometer and speedometer combination with a programmable shift light and integrated gear indicator. It provides real-time monitoring of your bike’s vital signs, including engine temperature, battery voltage, and tire pressure. For those seeking even more data, add-on components and sensors are available to expand functionality to include air suspension monitoring and enhanced fuel level tracking.

Key Features and Technical Specifications:

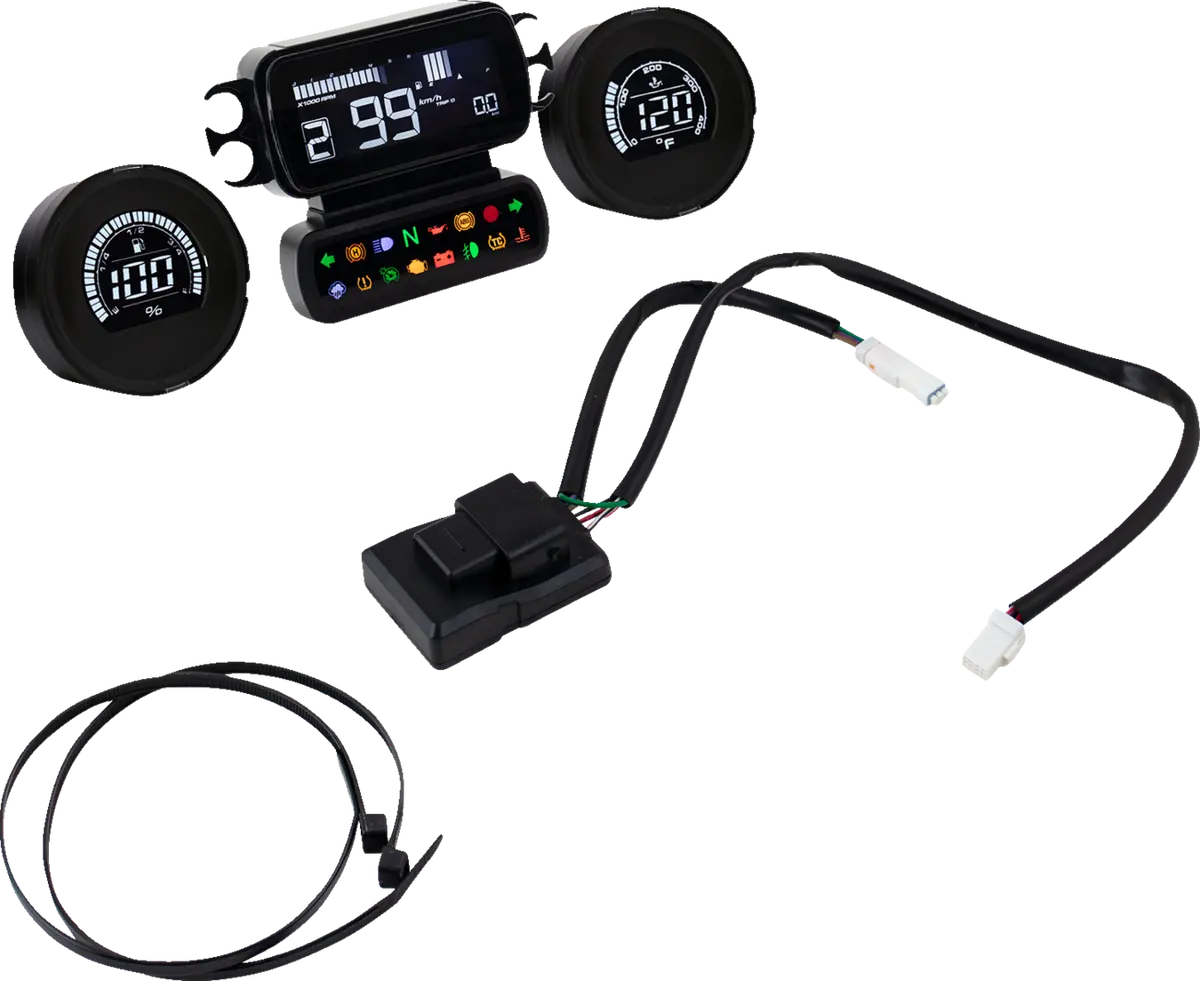

• Seamless Integration: Plugs directly into the stock harness and is fully compatible with CANBUS systems.
• Display Range: 0-124 mph.
• Operating Voltage: 12VDC.
• Effective Temperature Range: -4°F–185°F (-20°C–85°C).
• Engine Temperature Range: -38°F–572°F (-39°C–300°C).
• Fuel Meter: 10-level display for precise tracking.
• Dimensions: Main gauge measures 3-7/16” L x 1-1/16” W x 2-5/8” H; Add-on kits measure 2-3/4″ Outside Diameter x 1-3/4″ Depth.

Compliance and Installation Notes:

• For XL models: The purchase of a separate fuel level sensor kit (OEM PART #6120008) may be required for the fuel meter to function properly.
• For CVO models: To access gauge settings, the run/stop switch must be turned ON to prevent the bike from powering off during adjustment.
• Depending on your specific application, a handlebar riser kit with a gauge cutout or a relocation kit may be required for mounting.

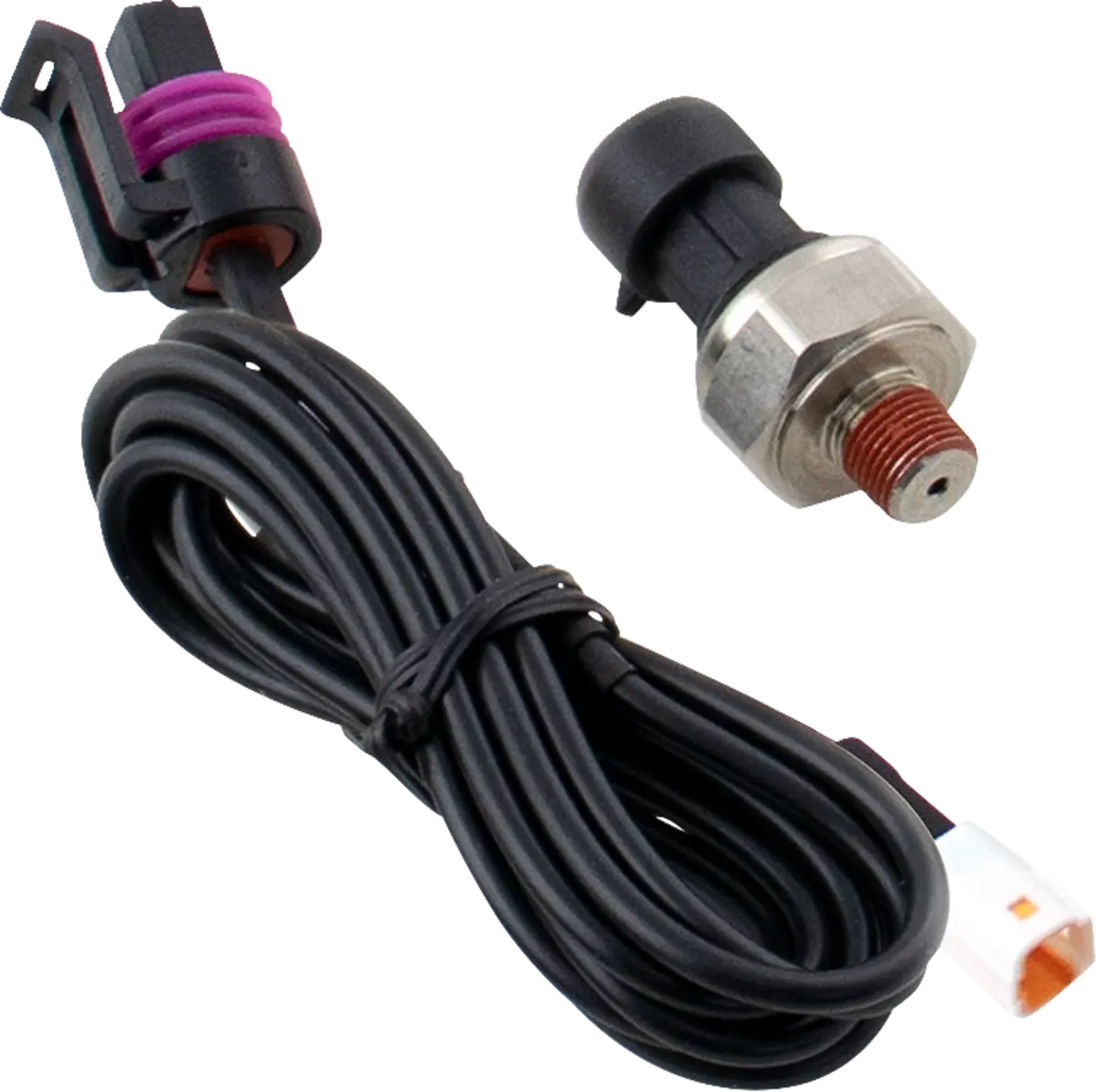

• Optional accessories include a dedicated air pressure sensor with extension wire for air suspension systems and replacement rubber gaskets with brass bushings to ensure a secure, weather-resistant fit.
