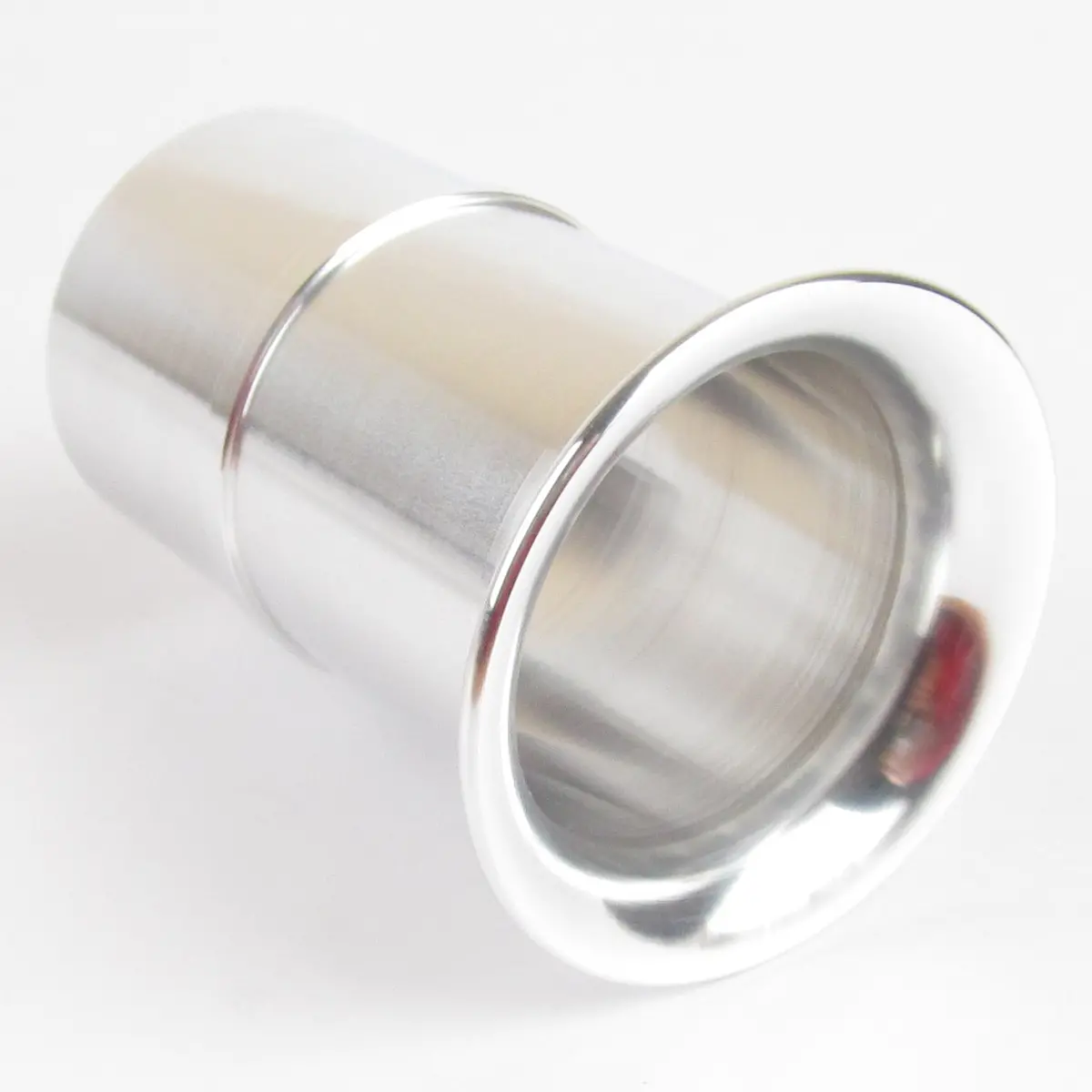

Weber 45 DCOE Slot-In Ram Tube Kit – Available in 26mm, 38mm, and 50mm Diameters

Description

 Top quality machined alloy trumpets – made in the UK

Lightweight solid polished aluminium- no welding or gluing.

To suit Weber DCOE 45mm carburettors W45/26

• 26mm long. (From fitting face of carburettor)
• 64.25mm maximum diameter at the flared end.
• 46mm inside diameter at slot in (carburettor end)
• 48mm outside diameter at slot in (carburettor end)
• 33mm length of slot in part (to underside of clamping ring

To suit Weber DCOE 45mm carburettors W45/38

• 38mm long. (From fitting face of carburettor)
• 64.25mm maximum diameter at the flared end.
• 46mm inside diameter at slot in (carburettor end)
• 48mm outside diameter at slot in (carburettor end)
• 33mm length of slot in part (to underside of clamping ring

To suit Weber DCOE 45mm carburettors W45/50

• 50mm long. (From fitting face of carburettor)
• 64.25mm maximum diameter at the flared end.
• 46mm inside diameter at slot in (carburettor end)
• 48mm outside diameter at slot in (carburettor end)
• 33mm length of slot in part (to underside of clamping ring
